SUNTEX - 8-22X-01 Pure Water Resistivity Sensor, 2-electrode



The 8-22X-01 series resistivity probe applies PTFE material for its body to resist erosion from high purity solvent solution. Its compact design also make the handling much easier. Combining the "8-TF-02" bypass chamber to prevent air saturation for accurate sample measurement procedure.



8-222-01
Pure water 2-electrode resistivity probe(cell constant 0.05)
Range: 0.00~20.00MΩ.cm, 0.00~200.0μS/cm, PTFE/ Titanium



8-221-01
Ultra-pure water 2-electrode resistivity probe(cell constant 0.01)
Range: 0.00~20.00MΩ.cm, 0.00~50.0μS/cm, PTFE/ Titanium

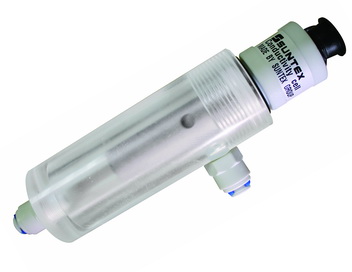

8-TF02
3/4" NPT bypass chamber for resistivity probe

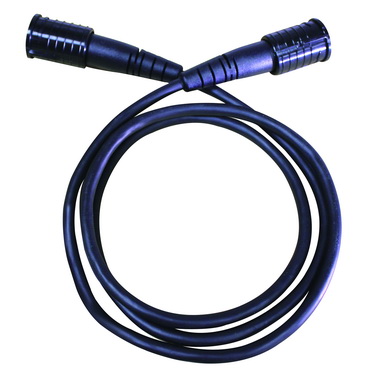

8-101D
Cable for 8-221-01/8-222-01 resistivity probe, 1.2M



8-103D
Cable for 8-221-01/8-222-01 resistivity probe, 3M



Order number:

8-221-01

8-222-01

Range

0.05μS/cm~20.00μS/cm
0.00~20.00 MΩ·cm

0.05μS/cm~100.00μS/cm
0.00~18.00 MΩ·cm

Cell constant

0.01 cm-1

0.05 cm-1

Application

Ultrapure water

Pure water

Type

2-electrode sensor

Working temp.

0~70°Ｃ

Pressure

0~7 bar at 25°C(77°F)

Electrode Material

Titanium, PTFE

Body Material

PTFE

Temp. sensor

NTC 30K

Insertion length

63mm

Max. length

104mm

Compatible cable length: 1.2m (8-101D), 3m (8-103D)

Compatible bypass chamber: 8-TF02
